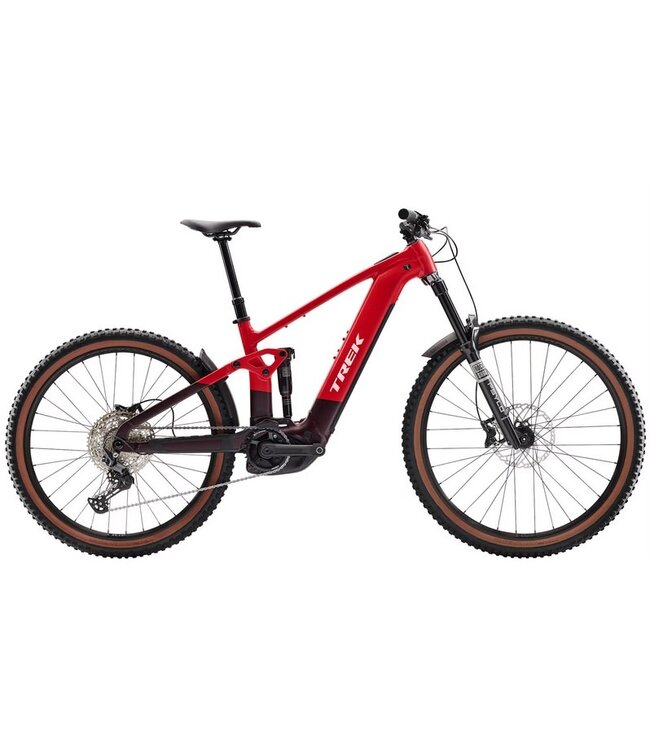

2026 TREK RAIL+ 5 GEN 5
C$7,599.95 C$6,899.95 Excl. tax
Add to cart
2026 TREK RAIL+ 5 GEN 5

2026 TREK RAIL+ 5 GEN 5

C$7,599.95
C$6,899.95 Excl. tax
In stock

***STAMPEDE WEEK SALE TILL JULY 12TH***
Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminum frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork for rough terrain. Read more.

Add to compare

Product description

Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Fork
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
Shock
RockShox Deluxe Select+ RT, 205mm x 65mm

Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
*Tire
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 27.5x2.60", Fork: See manufacturer

Battery
Bosch PowerTube 800Wh, smart system
Charger
Bosch standard 2A, 110V, smart system
Controller
Bosch System Controller BRC3100, smart system
Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
E-bike Classification
Class 1

Shifter
Shimano Deore M6100, 12 speed
Rear derailleur
Shimano Deore M6100, long cage
Crank arm
E*thirteen E*spec Plus, 160mm length
Cassette
Shimano Deore M6100, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Pedal
VP-536 nylon platform
Max chainring size
1x: 36T

Saddle
Bontrager Verse P3, steel rails
*Seatpost
Size: S
TranzX JD-YSI34, 100mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor
Shimano RT66, 6-bolt, 203mm
Rotor size
Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Fender
Trek custom fender

Weight
M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
