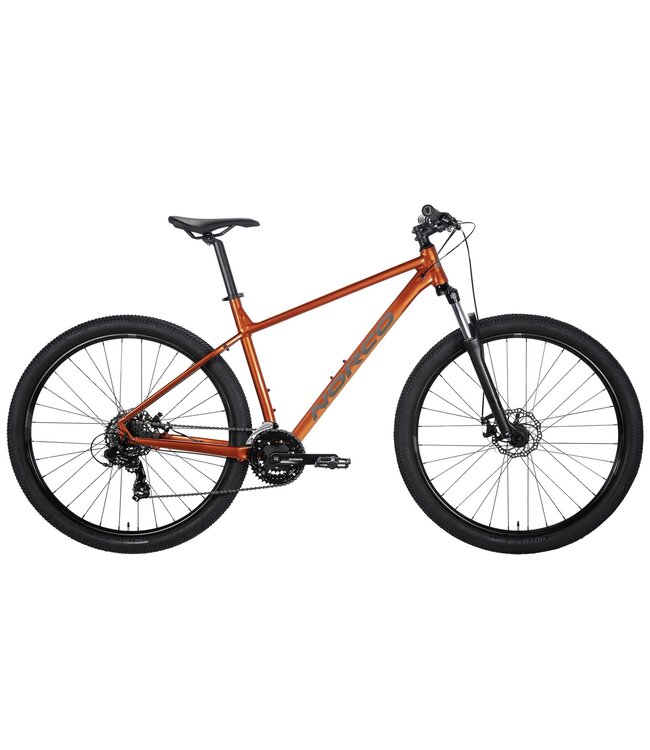

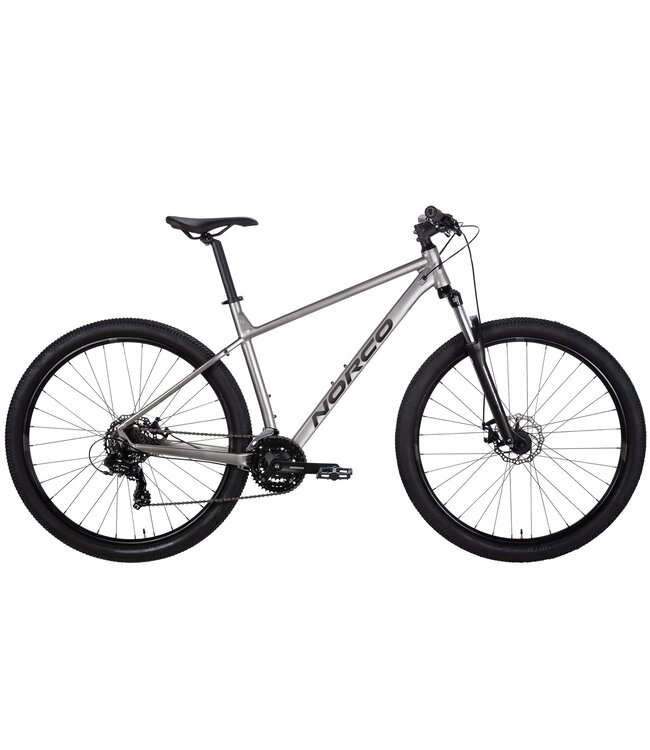

With a comfortable, capable off-road design, the 6061 aluminum frame is off-road worthy, and capable of leading a double life on city streets and park paths. Designed with our holistic approach to fit and geometry, the Storm 5’s longer reach, slacker head tube angle and steep seat tube angle provides more powerful, efficient pedaling, increased climbing traction and added grip and control when descending.
Complementing its 100mm of SR Suntour XCE28 fork travel is a solid, reliable Shimano Tourney EZ-Fire 21 speed drivetrain, so you can always find the right gear and spend less time at the shop. The mechanical disc brakes provide consistent stopping power on and off of the road.
FRAMESET:
FRAME Storm 6061 Alloy XC Frame
FORK SR Suntour XCE28, 100mm Travel
DRIVETRAIN:
REAR SHIFTER: Shimano TX ST-EF500
REAR DERAILLEUR: Shimano Tourney RD-TX300
FRONT SHIFTER: Shimano TX ST-EF500
FRONT DERAILLEUR: Shimano Tourney FD-TY500
CRANKSET: Prowheel TA-CQ90 24/34/42T, 170mm (XXS, XS, S), 175mm - (M, L, XL)
BOTTOM BRACKET: Cartridge, BSA Threaded
CASSETTE: CS-M3007, 11-34T, 7 Speed
CHAIN: KMC Z7
PEDALS: VP Nylon FlatBRAKES:
BRAKES:
FRONT BRAKE: C-Star Mechanical Disc Brake
FRONT BRAKE: ROTOR 160mm
REAR BRAKE: C-Star Mechanical Disc Brake
REAR BRAKE: ROTOR 160mm
BRAKE LEVERS: Shimano EF500 TourneyComponents
HANDLEBAR: X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
STEM: Alloy 60mm
SEATPOST: Alloy 31.6mm
HEADSET: Zero Stack
SADDLE: Norco XC
GRIPS: Norco
WHEELS:
FRONT HUB: Alloy QR, 9x100mm QR, 6 Bolt
REAR HUB: Alloy QR, 10x135mm QR, HG, 6 Bolt
RIMS: WTB SX19
TIRES: WTB Starflight 2.25"
SPOKES/NIPPLES: Stainless Black
