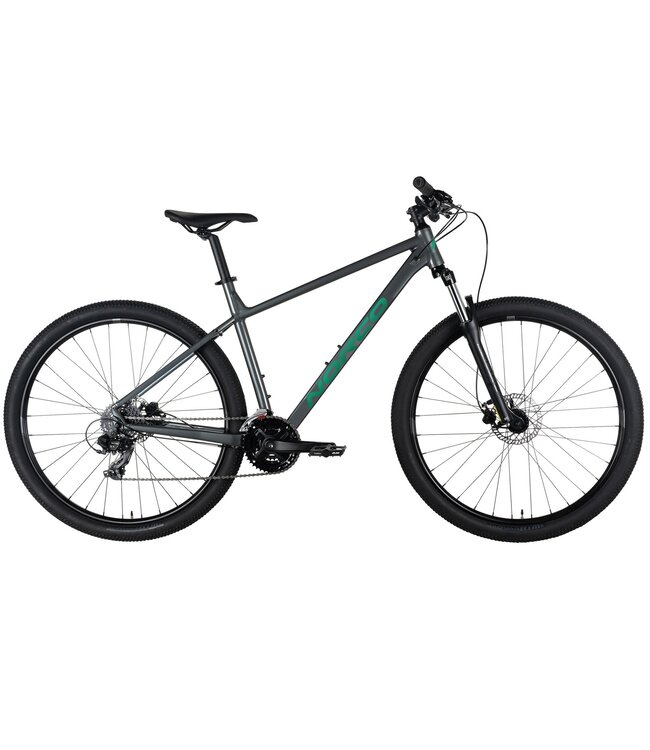

With a comfortable, capable off-road design, the 6061 aluminum frame is off-road worthy, and capable of leading a double life on city streets and park paths. Designed with our holistic approach to fit and geometry, the Storm 4’s longer reach, slacker head tube angle and steep seat tube angle provides more powerful, efficient pedalling, increased climbing traction and added grip and control when descending.
Complementing its 100mm of SR Suntour XCE28 fork travel is a solid, reliable Shimano Altus/Tourney 21 speed drivetrain, so you can always find the right gear and spend less time at the shop. The Tektro hydraulic disc brakes provide controllable power for confident, safe stops on and off of the road.
Frameset
FRAME: Storm 6061 Alloy XC Frame
FORK: SR Suntour XCE28, 100mm Travel
Drivetrain
REAR SHIFTER: Shimano Altus SL-M315
REAR DERAILLEUR: Shimano Tourney RD-TX300
FRONT SHIFTER: Shimano Altus SL-M315
FRONT DERAILLEUR: Shimano Tourney FD-TY500
CRANKSET: Prowheel Alloy, 24/34/42T
BOTTOM BRACKET: Cartridge, BSA Threaded
CASSETTE: CS-M3007 11-34T
CHAIN: KMC Z7
PEDALS: VP Nylon FlatBrakes
Brakes
FRONT BRAKE: Tektro HD-M275 Hydraulic Resin Pads
FRONT BRAKE ROTOR: Tektro 160mm
REAR BRAKE: Tektro HD-M275 Hydraulic, Resin Pads
REAR BRAKE ROTOR: Tektro 160mm
BRAKE LEVERS: Tektro HD-M275, HD-M276 Short Reach on Step-ThruComponents
Components
HANDLEBAR: X6 Alloy, 740mm, 25mm Rise, 31.8mm Bore
STEM: Norco Alloy 60mm
SEATPOST: Alloy
HEADSET: Zero Stack
SADDLE: Norco XC
GRIPS: Norco
Wheels
FRONT HUB: Alloy QR 9x100mm QR
REAR HUB: Alloy QR 10x135mm QR HG
RIMS: WTB SX19
TIRES: WTB Starflight 2.25"
SPOKES/NIPPLES: Stainless, 14g, Black
