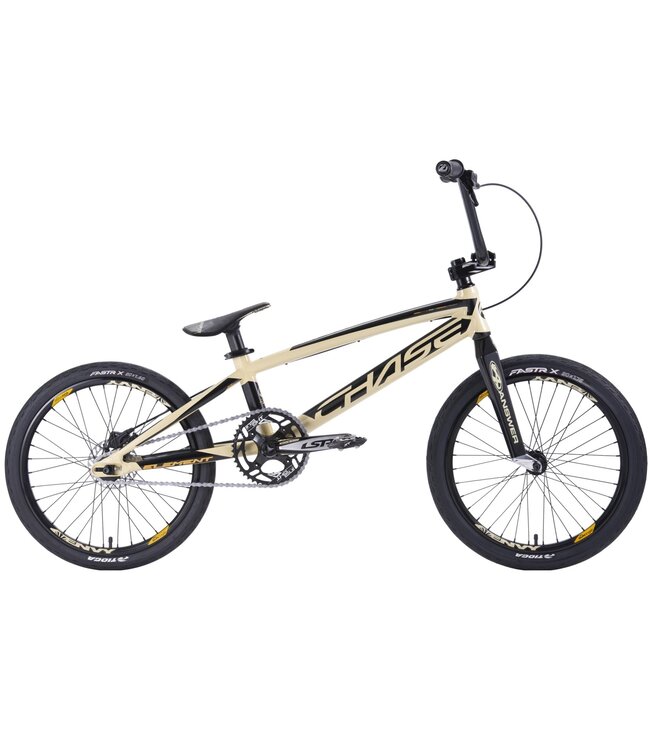

The 2022 Element offers incredible features such as Hydroformed Alloy Frame, Disc Brake Specific, ANSWER Dagger carbon fork, TIOGA FastR X tires, 31.8mm handlebar and stem, Hydraulic Disc Brakes with updated mounting system, Chase Triple Precise clutch rear cassette hub, ISO Brake disc rotor, SUN RINGLÉ rims, ELEVN Aero Pivotal seat & post, EXCESS LSP crank, BB86 Press Fit Bottom Bracket, INSIGHT chainring and grips. With all the parts together with this top notch frame, Chase was able to help make the ultimate Elite level complete race bike – One that we feel is the best bike that is available today.
- FRAME : Chase Element Pro XXXL 22" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
- STEM: Chase Element 31.8mm 53mm
- HANDLEBAR: Chase Element 31.8mm 8.5"
- CHAINRING : Insight 44T 4 Bolts BCD 104mm
- CRANKSET : Excess LSP 180mm, Press Fit BB86
- HUBS : Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
- RIMS : Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
- TIRES : Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
- BRAKES: Radius Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
- SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
- WEIGHT: 21.275 LBS / 9.65 KG WITH PEDALS
- RIDER SIZE: 6′ 1,2″ – 6′ 5″ / 1M86 – 1M95
